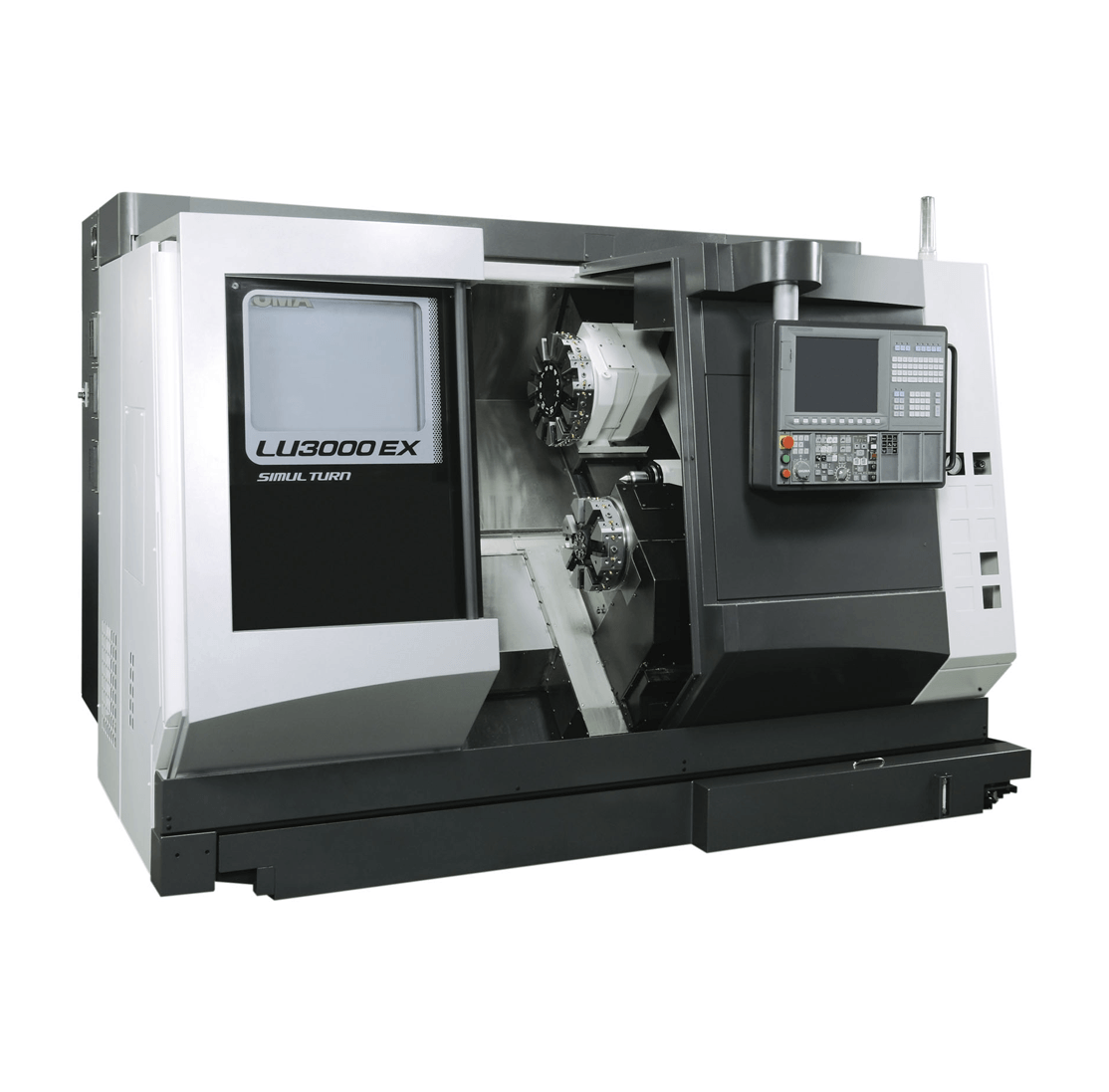

Okuma LU EX Series

An average of 35 % savings on time per part and cost per part: the turning machines of the SIMUL TURN LU EX series with their two revolving tool holders are technology and market leaders in the area of 4-axis synchronous and simultaneous machining. With its solid construction, large flat-base polished guideways and high-torque drives, the series is particularly suitable for workpieces with a high length-to-diameter ratio.

The LU series also proves to be an excellent choice for machining removable materials and for hard turning. The Okuma OSP-P300L control, a proven leader in 4-axis programming, guarantees the usual high level of user comfort.

Specifiche tecniche

Technical DataLU 3000EXLU 4000EXLU 7000EX
Max. Turning diametermm410480900/670
Max. Turning lengthmm600/10006502000
Main spindle speedmin-15000da 10 a 1500
Number of tools12/812/1012/10
Motor (PREX)kW22/1522/15 (VAC)45/37 (VAC)
X-Z rapid travelsm/min25/3025/3020/20
Support surfacemm2.950×2.1763,570 × 2,3107.147 x 3.256
OptionsM/MY/2MM
