Okuma MS-320H
- Milling
- |Compact CNC horizontal machining center
The Okuma MS-320H is a compact 4-axis CNC horizontal machining center designed for high-volume production of precision components in minimal floor space. Travels measure 250 x 250 x 570 mm (X/Y/Z), and the Ø320 mm table/pallet, combined with the standard 8-line hydraulic feed-through table, enables multi-face machining in a single setup. The BT40 spindle reaches 15,000 rpm with 25 kW peak power (11 kW continuous), while rapids reach 50 m/min in X/Y and 60 m/min in Z. The tool magazine holds 10 tools, expandable to 24, and the Okuma OSP-P500 control runs the machine; the footprint is just 1,580 x 3,120 mm.

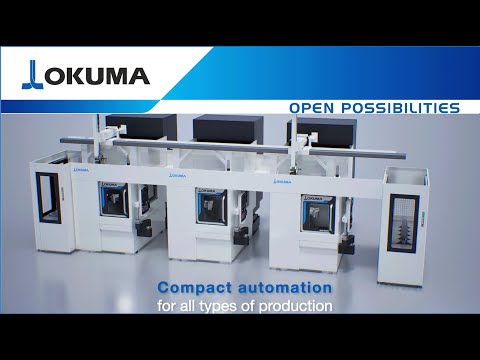

Video
CNC control
- Control
- Okuma OSP-P500
- Standard programming
- ISO
- Conversational programming
- IGF-M (optional))
- CAM
- Third-party CAM
Model parameters
| Parameter | MS-320H |
|---|---|
| Axis travel (X×Y×Z) | 250 × 250 × 570 mm |
| Swing diameter | Ø320 mm (table/pallet) |
| Spindle – speed | 15000 rpm |
| Spindle – taper / mount | BT40 |
| Spindle power (continuous) | 11 kW (continuous) |
| Spindle power (peak) | 25 kW (peak) |
| Number of axes | 4 axes |
| Tool magazine – capacity | 10 (standard) / 24 (optional) |
| Rapid traverse | X/Y 50 – Z 60 m/min |
| CNC – model | OSP-P500 |
