Star SW
- Turning
- |Sliding-headstock (Swiss-type) automatic lathe

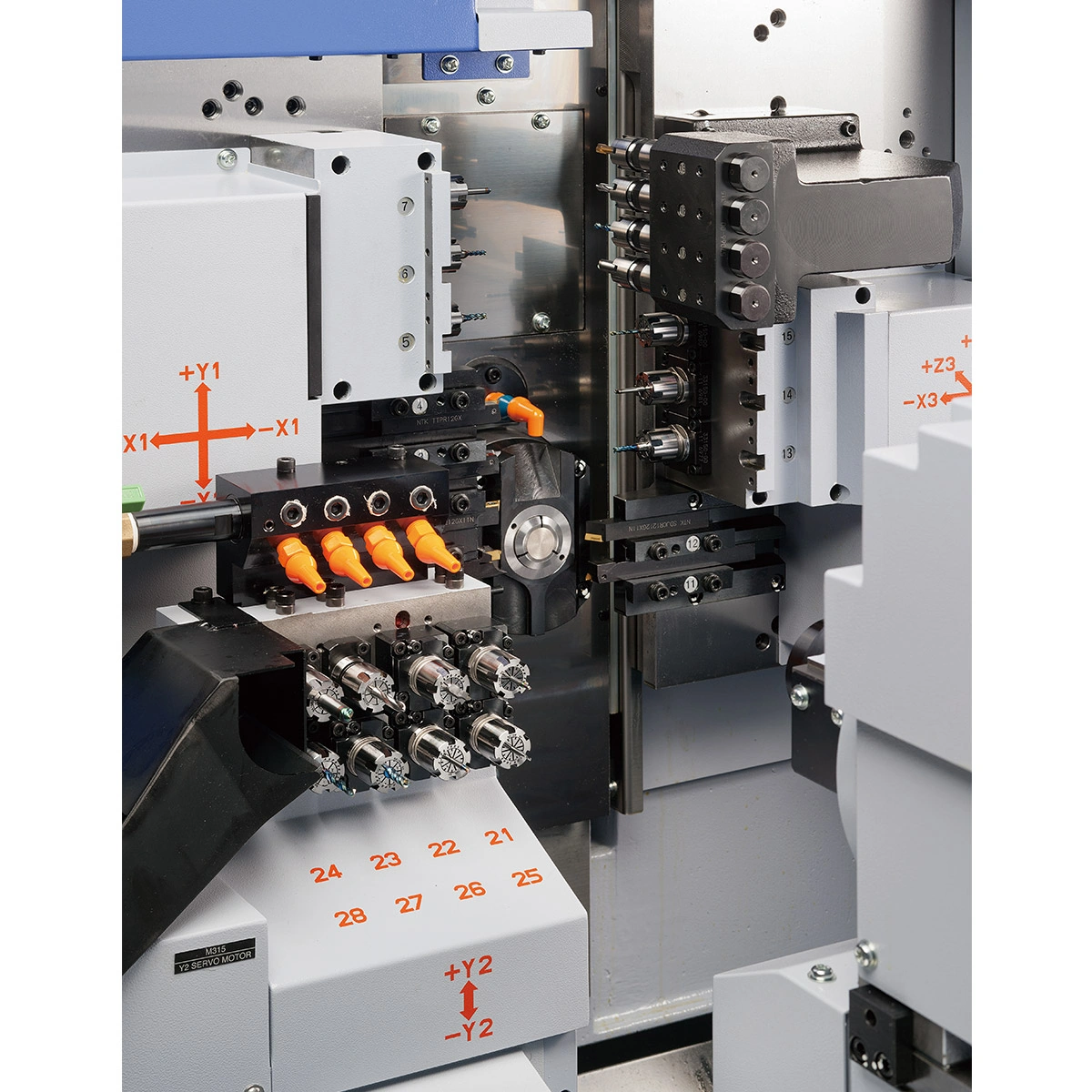

The STAR SW sliding headstock lathe with computerized numerical control integrates the traditional features of a Swiss-Type lathe with STAR’s cutting-edge technology; this means that simultaneous double-sided turning, drilling, tapping and milling operations are possible.

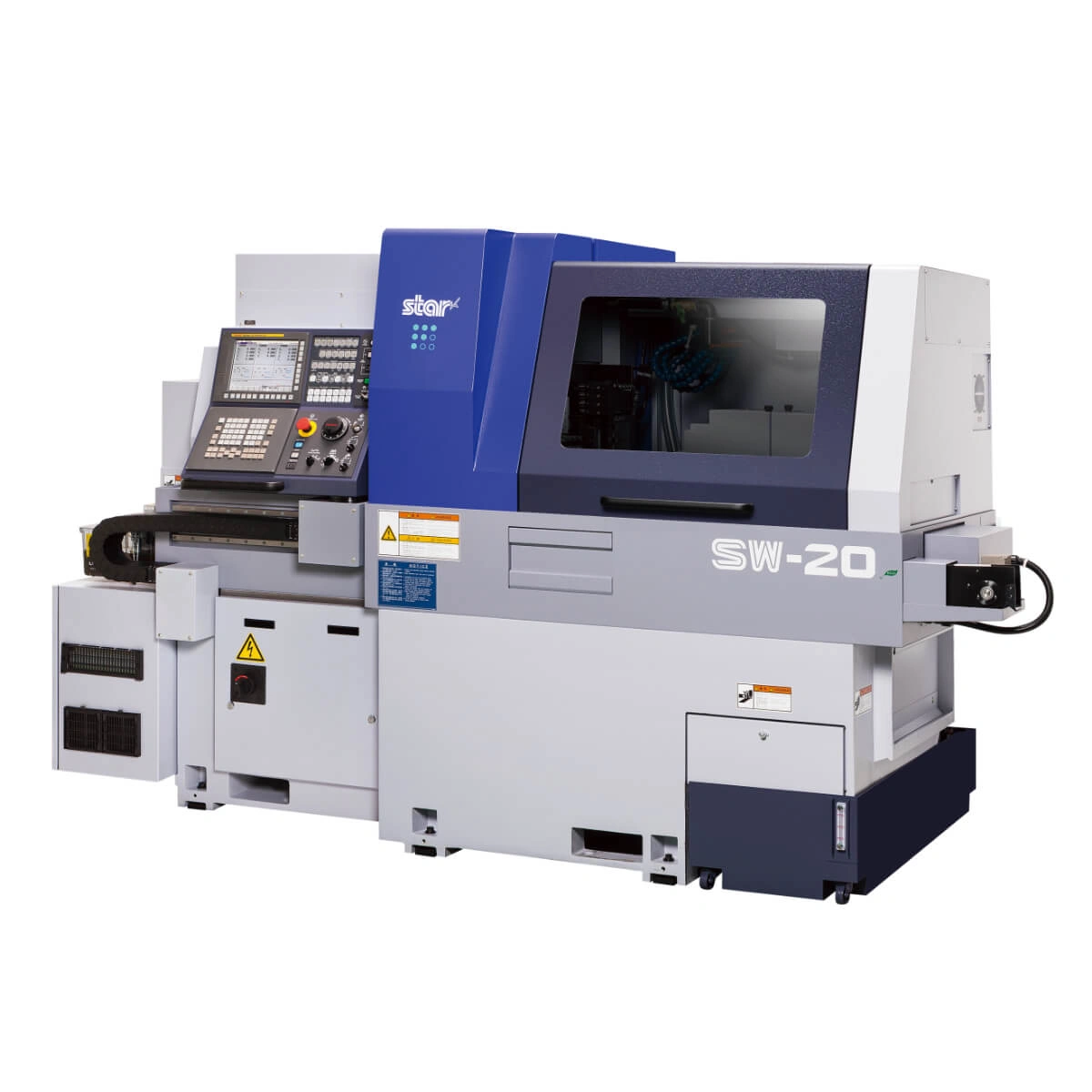

The Star SW series brings together sliding-headstock (Swiss-type) automatic lathes for precision bar turning, available in different sizes to suit various production needs. The SW-12RII model offers a headstock working length of 135 mm with guide bush, reducible to 30 mm when working without guide bush, thanks to the switchable configuration with/without guide bush (G.B./N.G.B.) that allows quickly switching between working modes. The larger SW-20 model instead reaches a working length of 205 mm, keeping the same flexible philosophy with switchable guide bush. This setup makes the SW series suitable both for short-part production without guide bush and for longer bar machining, letting users choose the machine size best suited to their production mix.
Video
CNC control
- Control
- Fanuc 31i-B5
- Standard programming
- ISO
- CAM
- Third-party CAM
Models comparison (2)
| Parameter | SW-12RII | SW-20 |
|---|---|---|
| Turning diameter | 12 mm / 13 mm (option) | 20 mm / 23 mm (option) |
| Bar diameter | 12 mm / 13 mm (option) | 20 mm / 23 mm (option) |
| Turning length | 135 mm (with bushing) | 205 mm |
| Guide bushing | Switchable with/without bar feeder (G.B./N.G.B.) | Switchable with/without bar guide (switchable G.B./N.G.B.) |
| Turning length (without guide bushing) | 30 mm | — |
| Spindle power (continuous) | 3.7 kW | 3.7 kW |
| Spindle – speed | 15000 1/m | 10000 1/min |
| Number of axes | 10 | 11 |
| Rapid traverse | 35 m/min | 35 m/min |
| Machine weight | approx. 2100 kg | 3400 kg |
